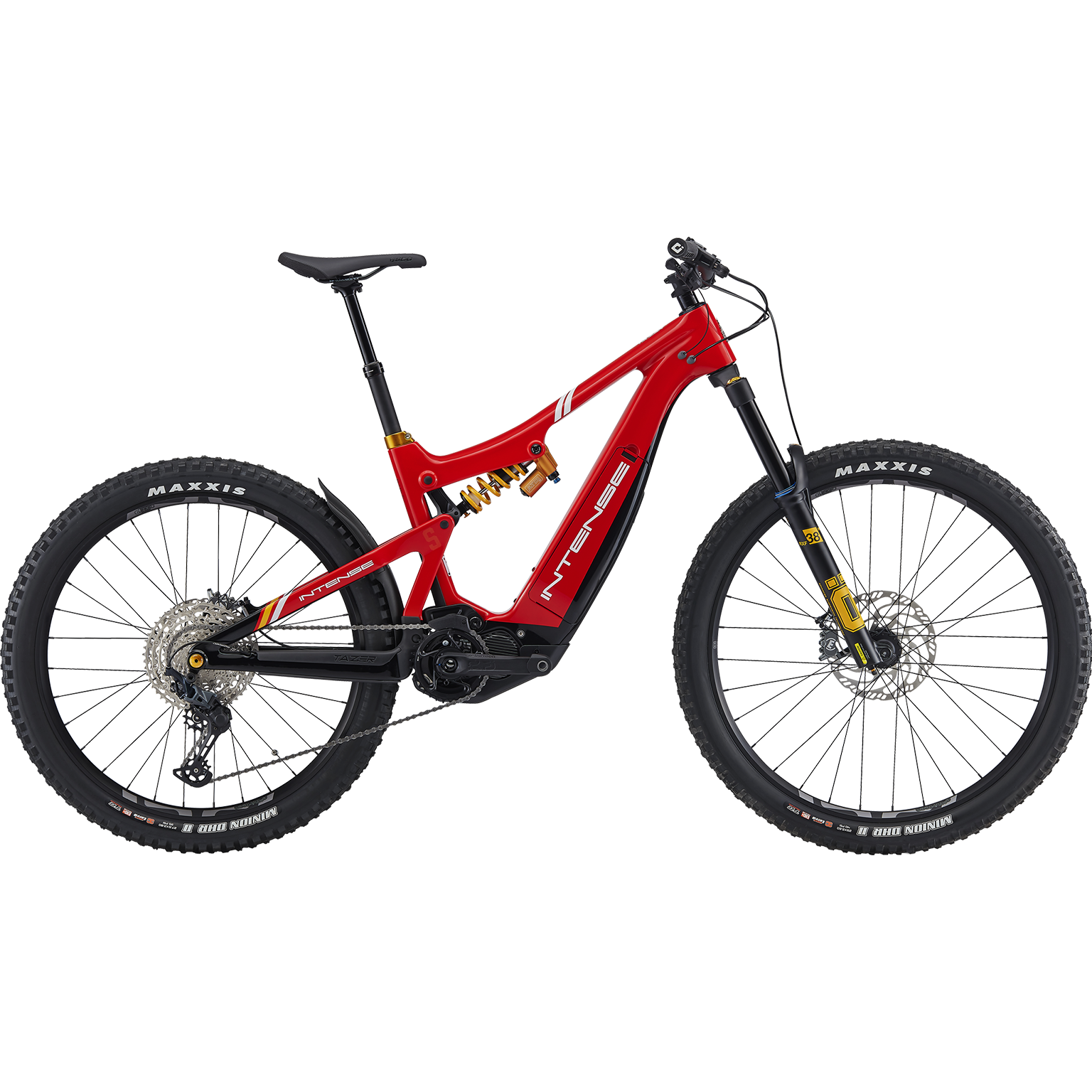

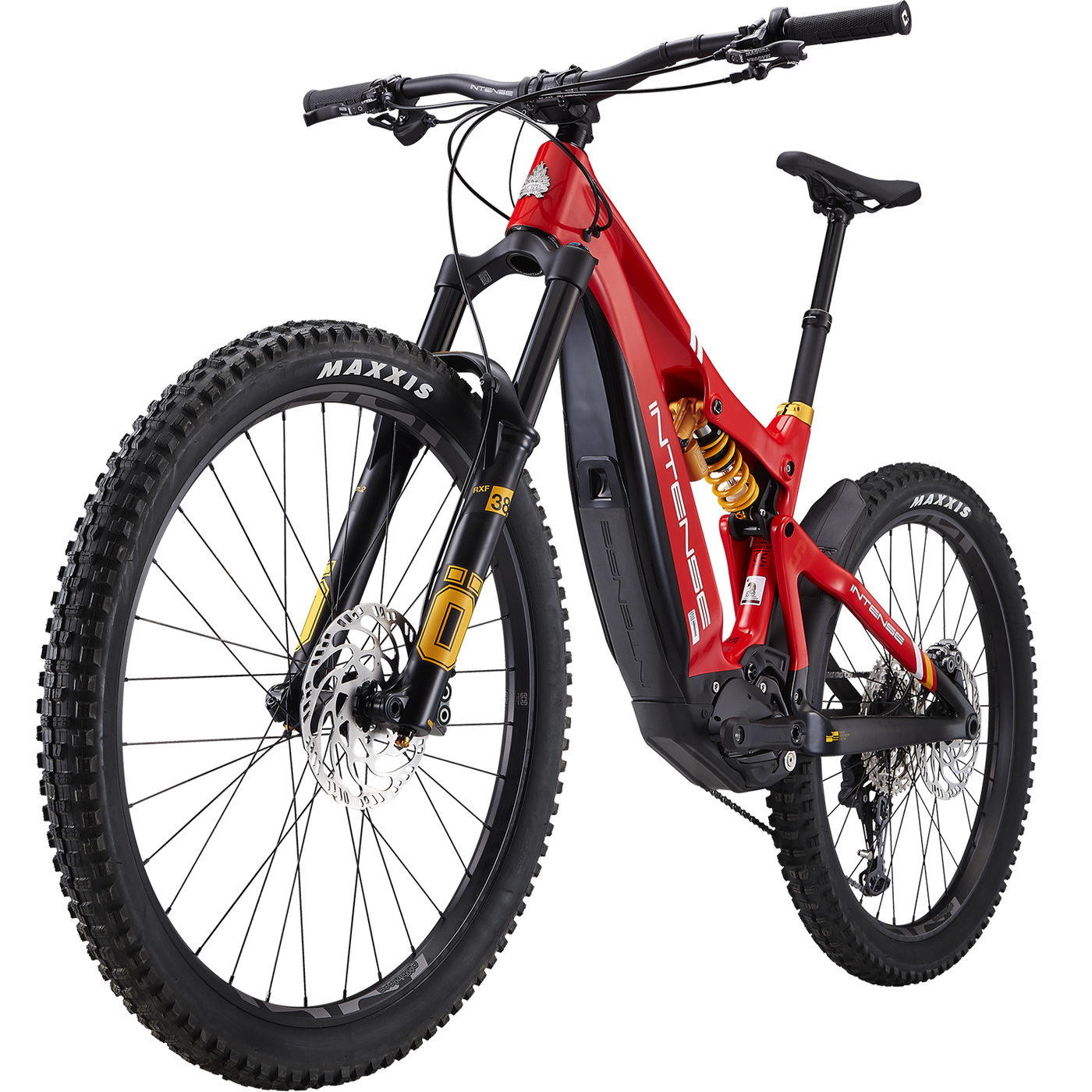

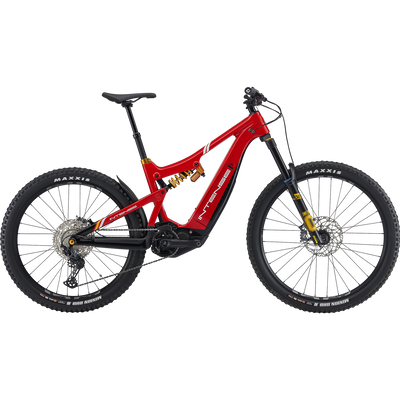

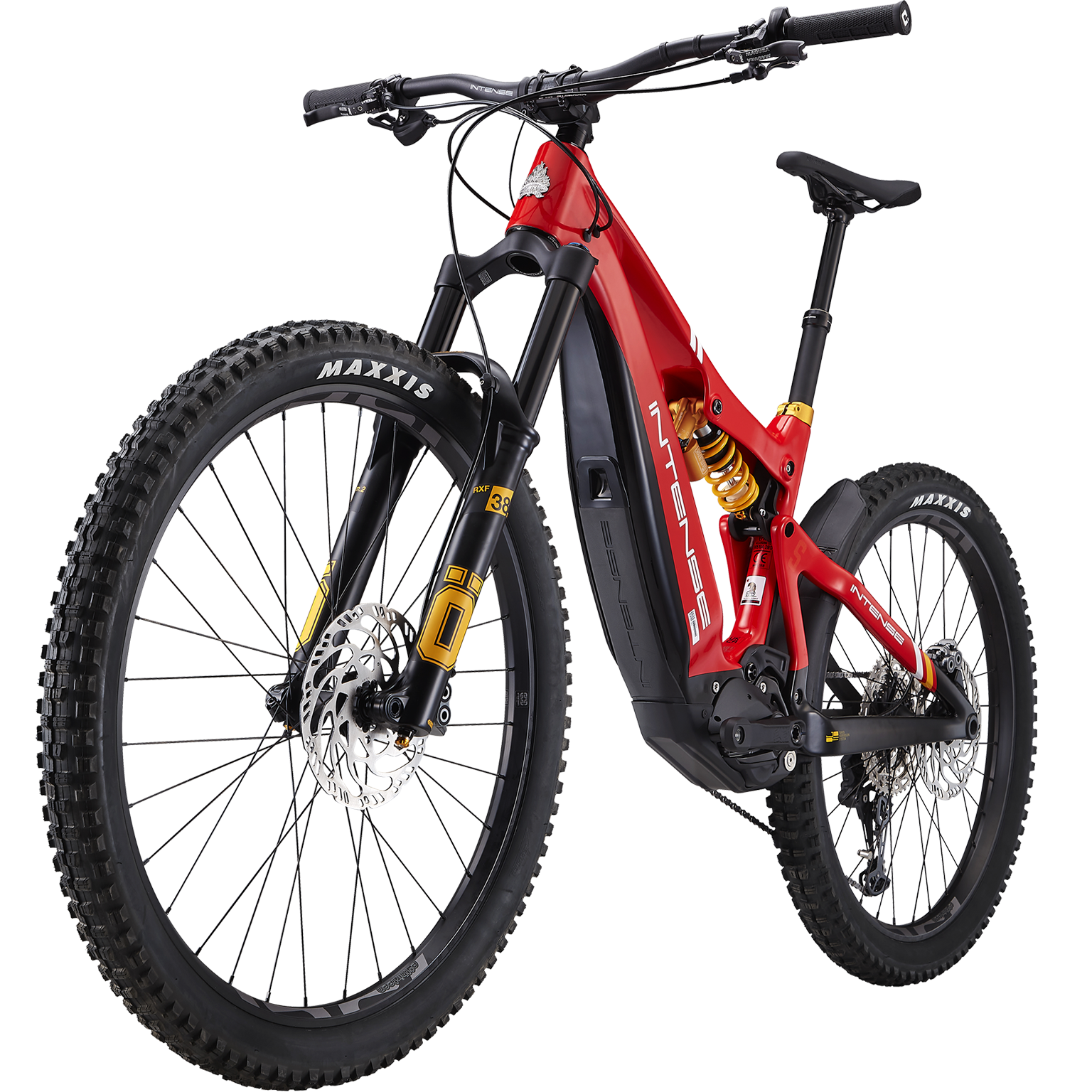

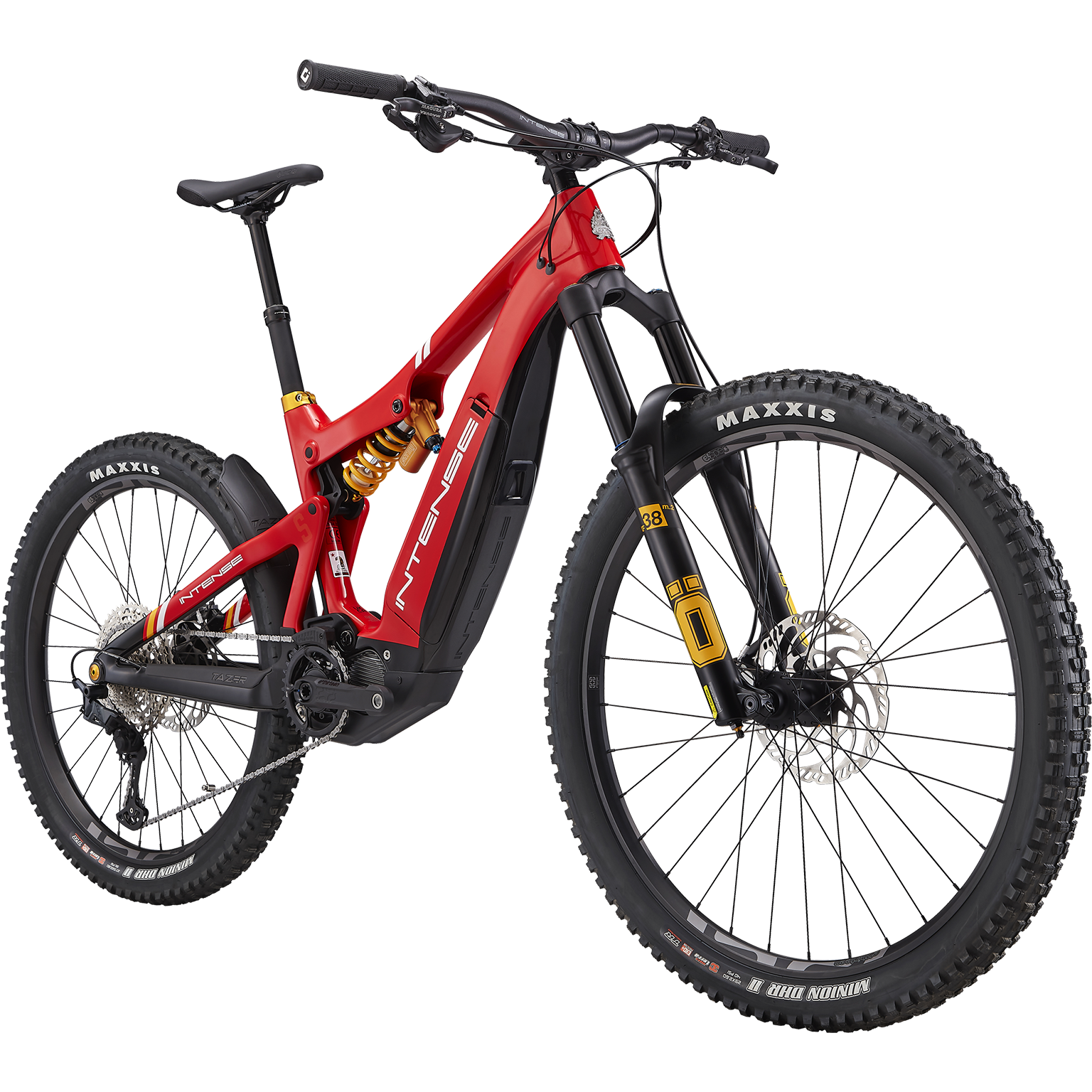

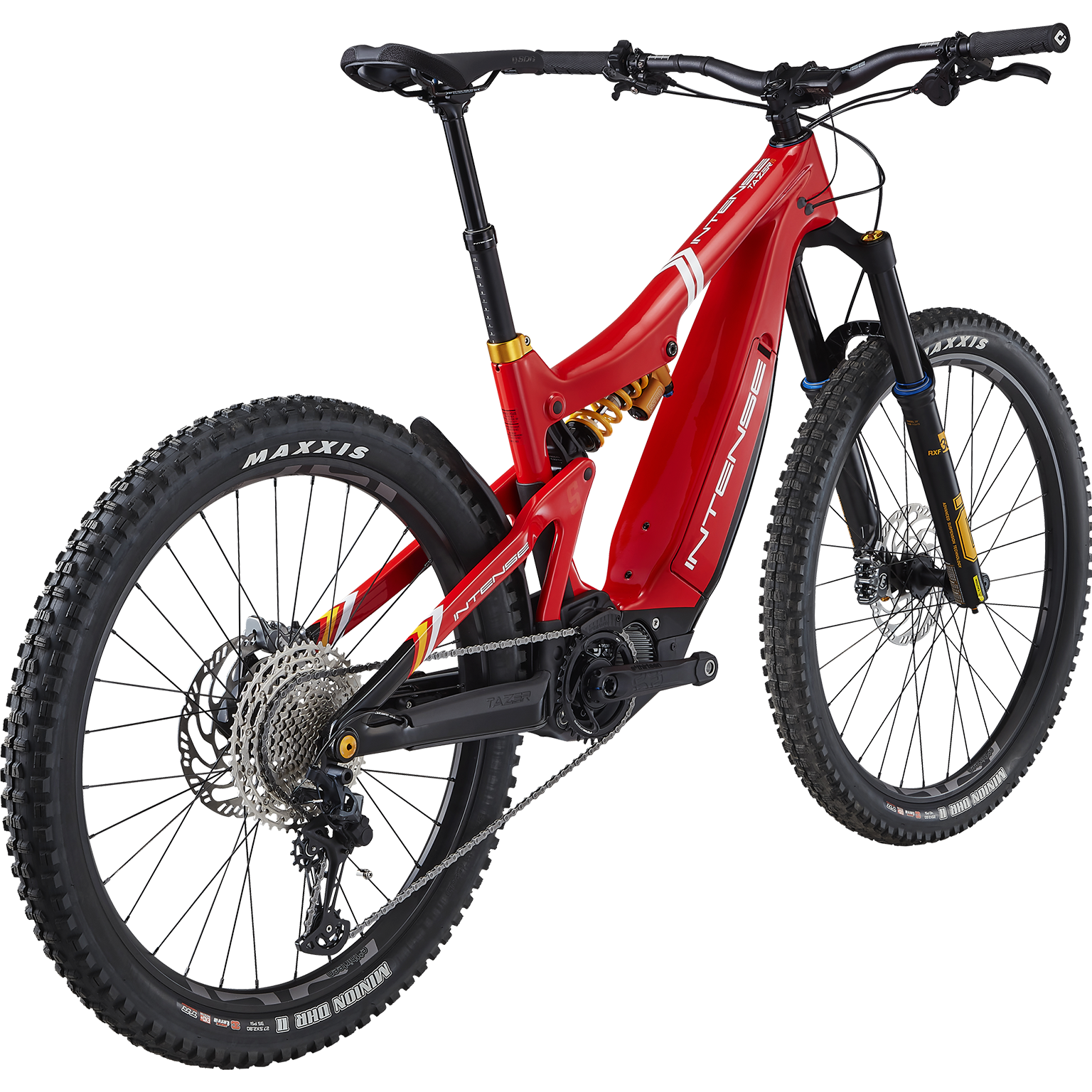

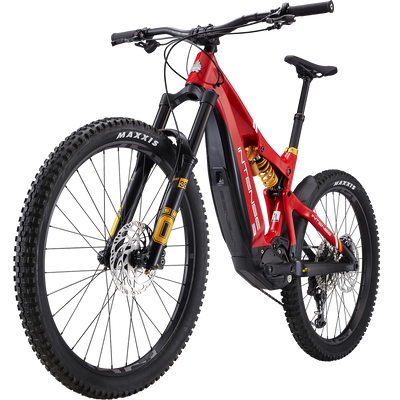

The Tazer opens up new opportunities – you will climb faster, ride further and do more of the ‘good stuff’. And with our S model you get a very ‘special’ component package. With Shimano's smooth and powerful STEPS EP8 motor and 504Wh battery the Tazer is our high-performance Enduro eBike. With a trail flattening 29" wheel up front, a traction seeking 27.5+ in the rear and perfect geometry you get excellent handling and optimum grip.
BUILD | S | |
FRAME | Tazer Performance E Monocoque carbon frame. Optimized layup carbon fiber. Alloy top link, internal shift, Dropper Post, Brake, Display unit routing, E*Spec Chainguide mount pattern, Flak guard armor, Integrated mud guard, 155mm Travel. | |
MOTOR | Shimano Steps EP800 25KM/H 85Nm Torque | |
BATTERY | BT-E8010, FOR STEPS, 504Wh. Battery lock w/2 keys | |

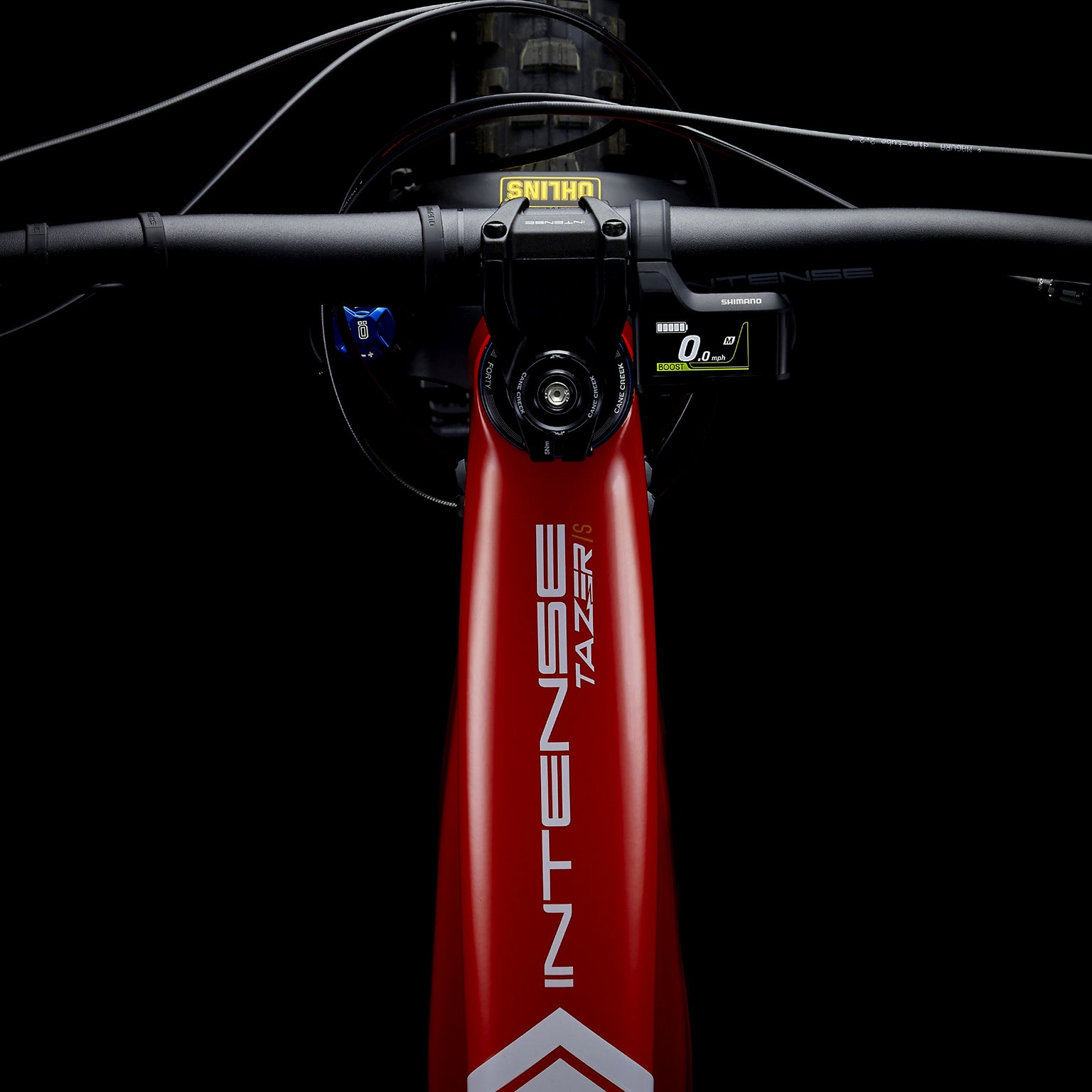

DISPLAY UNIT | Shimano Steps SC-EM800 Display/Cycle Computer, 35mm Clamp Band Diameter | |
FORK | Öhlins RXF 38 M.2 Air TTX28 29"/44, 179mm of Travel | |
SHOCK | Öhlins TTX22M Coil / 185mm x 55mm / 20mm x 8mm / 480 lbs/in (SM/MD) / 548 LBS (MD/LG) | |
WHEELSET |
e*Thirteen E*Spec Alloy Rim 30mm Rim Width x 29" Front / 35mm Rim Width x 27.5" Rear
|
|
HUBS | INTENSE E-Specific Alloy Hubs | |
TIRES | MAXXIS Minion DHR II MAXX Terra 3C Exo + - 29" x 2.60" Front . 27.5" x 2.80" Rear | |
SHIFTER | Shimano SLX 12SP, I-SPEC | |
DERAILLEUR | Shimano XT 12SP | |
CRANK | e*Thirteen e*Spec 34 Tooth Chainring 165mm length | |
CASSETTE | Shimano Deore 12SP, 10-51T | |
CHAIN | Shimano Deore 12SP | |
SADDLE | SDG BEL-AIR | |
SEATPOST | INTENSE Recon Dropper | |
HANDLEBAR | INTENSE Recon 35mm. 30mm Rise | |
STEM | INTENSE 35 45MM | |
BRAKESET | Magura MT7 Pro, 4-Piston caliper - Front Rotor Magura Storm HC - 203mm 6-Bolt / Rear Rotor Magura Storm HC - 203mm 6-Bolt | |
GRIPS | INTENSE Lock-On |
SIZE | SM/MD | LG/XL | |
WHEELBASE | 1233mm / 48.5" | 1285mm / 50.6" | |
TOPTUBE LENGTH | 609mm / 24" | 664mm / 26" | |
CHAINSTAY LENGTH | 450mm / 17.7" | 450mm / 17.7" | |
HEADTUBE LENGTH | 115mm / 4.5" | 125mm / 4.9" | |
HEADTUBE ANGLE | 64° | 64° | |
REACH | 435mm / 17.1" | 481mm / 18.9" | |
STACK | 634mm / 24.9" | 646mm / 25.4" | |
BB HEIGHT | 348mm / 13.7" | 348mm / 13.7" | |
BB DROP | 8.5mm / 0.34" | 8.9mm / 0.35" | |
SEATTUBE ANGLE (EFFECTIVE) | 74.5° | 74.5° | |
SEATTUBE ANGLE (ACTUAL) | 72.2° | 72.2° | |
SEATTUBE LENGTH | 419mm / 16.5" | 470mm / 18.5" | |
STANDOVER HEIGHT | 816mm / 32" | 836mm / 32.9" | |
FORK AXLE TO CROWN | 583mm / 23" | 583mm / 23" | |
LOWER HEADSET STACK HEIGHT | 4mm / 0.16" | 4mm / 0.16" | |
FORK OFFSET | 44mm / 1.7" | 44mm / 1.7" | |
FORK TRAVEL | 170mm / 6.7" | 170mm / 6.7" | |
REAR TRAVEL | 155mm / 6.1" | 155mm / 6.1" | |
REAR SHOCK SIZE | 185mm x 55mm | 185mm x 55mm | |
FRONT CENTER | 782mm / 30.8" | 835mm / 32.9 | |
BB HEIGHT BASED ON FRONT TIRE | 750mm / 29.5" | 750mm / 29.5" | |
BB HEIGHT BASED ON REAR TIRE | 730mm / 29" | 730mm / 29" |

RIDE FURTHER, RIDE FASTER

EXPLORE NEW TERRITORY

ENJOY THE CLIMBS, CRUSH THE DOWNS

JS TUNED ENDURO LINK
COMPLIMENTARY TOOL BOX
Every INTENSE bike comes with it’s own complimentary toolbox(sent separately), which includes all the tools you will need to build and maintain your bike – a 3-way Y-Wrench Multi-Hex/Allen tool, high pressure shock pump, torque wrench and a selection of Philips, Hex/Allen and Torx drivers/bits. We also supply sealant and valves to convert your tires to a tubeless setup.
